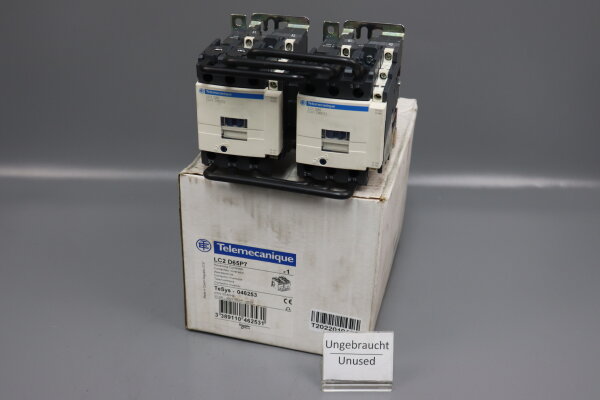

Telemecanique Schütz TeSys LC2D65P7 AC-3 440V 65 A coil 230V 046253 Unused OVP

Telemecanique Schütz TeSys LC2D65P7 AC-3 440V 65 A coil 230V 046253 Unused OVP

Artikelnummer: T2022019196
GTIN: 3389110462531
Kategorie: Elektromaterial
Hersteller: Telemecanique/Schneider

899,15 €

exkl. 19% USt. , zzgl. (National)

4 Auf Lager
Lieferzeit: 3 - 5 Werktage (Ausland)

Beschreibung

range	TeSys
product name	TeSys D
product or component type	Reversing contactor
device short name	LC2D
contactor application	Motor control Resistive load
utilisation category	AC-3 AC-1
device presentation	Preassembled with reversing power busbar
poles description	3P
power pole contact composition	3 NO
[Ue] rated operational voltage	Power circuit: <= 1000 V AC 25...400 Hz
[Ie] rated operational current	65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 80 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
motor power kW	18.5 kW at 220...230 V AC 50 Hz 30 kW at 380...400 V AC 50 Hz 37 kW at 500 V AC 50 Hz 37 kW at 660...690 V AC 50 Hz 37 kW at 440 V AC 50 Hz 37 kW at 415 V AC 50 Hz
motor power HP (UL / CSA)	5 hp at 115 V AC 60 Hz for 1 phase motors 20 hp at 200/208 V AC 60 Hz for 3 phases motors 50 hp at 575...600 V AC 60 Hz for 3 phases motors 50 hp at 460...480 V AC 60 Hz for 3 phases motors 20 hp at 220...240 V AC 60 Hz for 3 phases motors 10 hp at 230...240 V AC 60 Hz for 1 phase motors
control circuit type	AC at 50/60 Hz
[Uc] control circuit voltage	230 V AC 50/60 Hz
auxiliary contact composition	1 NO + 1 NC
[Uimp] rated impulse withstand voltage	8 kV conforming to IEC 60947
overvoltage category	III
[Ith] conventional free air thermal current	10 A (at 60 °C) for signalling circuit
Irms rated making capacity	140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 1000 A at 440 V for power circuit conforming to IEC 60947-4
rated breaking capacity	1000 A at 220/415/440 V for power circuit conforming to IEC 60947 1000 A at 500 V conforming to IEC 60947 630 A at 690 V conforming to IEC 60947
[Icw] rated short-time withstand current	100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit 520 A 40 °C - 10 s for power circuit 900 A 40 °C - 1 s for power circuit 110 A 40 °C - 10 min for power circuit 260 A 40 °C - 1 min for power circuit
associated fuse rating	10 A gG for signalling circuit conforming to IEC 60947-5-1
average impedance	1 mOhm - Ith 80 A 50 Hz for power circuit
[Ui] rated insulation voltage	Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Power circuit: 1000 V conforming to IEC 60947-4-1
electrical durability	1.4 Mcycles 80 A AC-1 at Ue <= 440 V 1.5 Mcycles 65 A AC-3 at Ue <= 440 V
power dissipation per pole	6.4 W AC-1 4.2 W AC-3
Front cover	With
interlocking type	Mechanical
mounting support	Rail Plate
standards	CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508
product certifications	BV CCC CSA DNV GL RINA UL EAC
connections - terminals	Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…25 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 2.5…16 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…25 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…25 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 2.5…16 mm²solid without cable end
tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 5 N.m - on screw clamp terminals - with screwdriver flat Ø 8 mm Power circuit: 5 N.m - on screw clamp terminals
operating time	20...26 ms closing 8...12 ms opening
safety reliability level	B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
mechanical durability	16000000 cycles
maximum operating rate	3600 cyc/h 55 °C

Versandgewicht:	4,50 kg
Artikelgewicht:	3,30 kg
Abmessungen ( Länge × Breite × Höhe ):	25,00 × 20,00 × 20,00 cm
Zustand / Condition:	Ungebraucht in OVP / Unused in box
